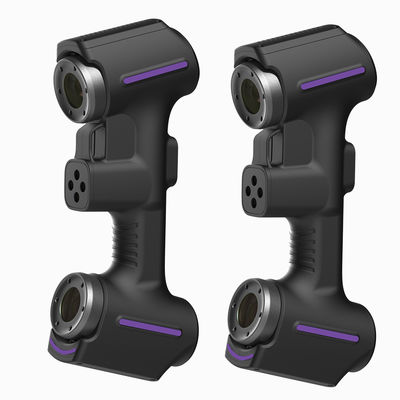

Name: Portable Handheld 3D Scanner Easy To Use For 3D Printing And Small Object Scanning
Brand: Hoyamo and Sinowon Inc
SKU: STL-34M
Availability: InStock

Portable Handheld 3D Scanner Easy To Use For 3D Printing And Small Object Scanning

1 ensembles

MOQ

Can be discussed

Prix

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Mettre en évidence:

Portable Handheld 3D Scanner

3D Printing Handheld Scanner

Easy handheld 3d scanner

Informations de base

Lieu d'origine: Dongguan

Nom de marque: Hoyamo

Certification: CE

Numéro de modèle: STL-34M

Conditions de paiement et expédition

Détails d'emballage: CONTRE-PLAQUÉ

Délai de livraison: 30 jours de travail

Conditions de paiement: L/C T/T

Capacité d'approvisionnement: 100 sets / mois

Galerie

Portable Handheld 3D Scanner Easy To Use For 3D Printing And Small Object Scanning

Description de produit

Handheld 3D Scanner STL-34M

Product Features

u STL-34M integrates AI algorithms into metrology-grade 3D scanning. With a refined, minimalist design, it emphasizes practicality and portability. The device is rugged, durable, and easy to carry.

u Unrestricted by working environments, STL-34M enables 3D measurements anytime, anywhere — whether in tight spaces or on large-scale objects.

u The innovative design adopts an internally sealed independent core cavity paired with a passive fin heat sink to ensure linear temperature stability and improve overall precision repeatability.

u Equipped with 50 blue crossed laser lines, it delivers up to 5,400,000 measurements per second with a scan area of 650 mm × 550 mm, ensuring a seamless and efficient 3D digitization experience.

u Metrology-grade precision captures every detail, while ultra-fast scanning speeds enable efficient 3D modeling.

Product Specifications

Handheld 3D Scanner
Model		STL-34M
Code #		310-111
Scanning Mode	High-Speed Scanning	26 Crossed blue laser scanning lines
	Precision Scanning	7 Beams of parallel blue laser lines
	Deep Hole Scanning	1 Additional blue laser line
Highest Precision		0.020mm
Maximum Scanning Speed		5,400,000 measurements per second
Maximum Scanning Field		650mm×550mm
Laser Class		Class II (Eye Safe)
Maximum Resolution		0.01mm
Volume Accuracy		0.015mm+0.035mm/m 0.015mm+0.025mm/m (Selection of photogrammetric scale bars)
Reference Distance		300mm (200mm fine mode)
Depth of Field		550mm
Output Format		STL, PLY, TXT etc.
Operating Temperature		-10°C to 40°C
Interface Type		Recommended USB 3.0
